What is a Force-Sensitive Resistor and How Does It Work?
A Force-Sensitive Resistor (FSR) is an intriguing component widely used in various applications. It responds to applied force, making it essential in touch-sensitive devices. These resistors change their resistance based on the pressure they sense, enabling innovative solutions in technology.
Understanding how a Force-Sensitive Resistor works is crucial for engineers and hobbyists alike. At a fundamental level, FSRs convert mechanical force into an electrical signal. They often consist of a conductive polymer that reacts to touch. This conversion process may vary in efficiency and accuracy, depending on the model.

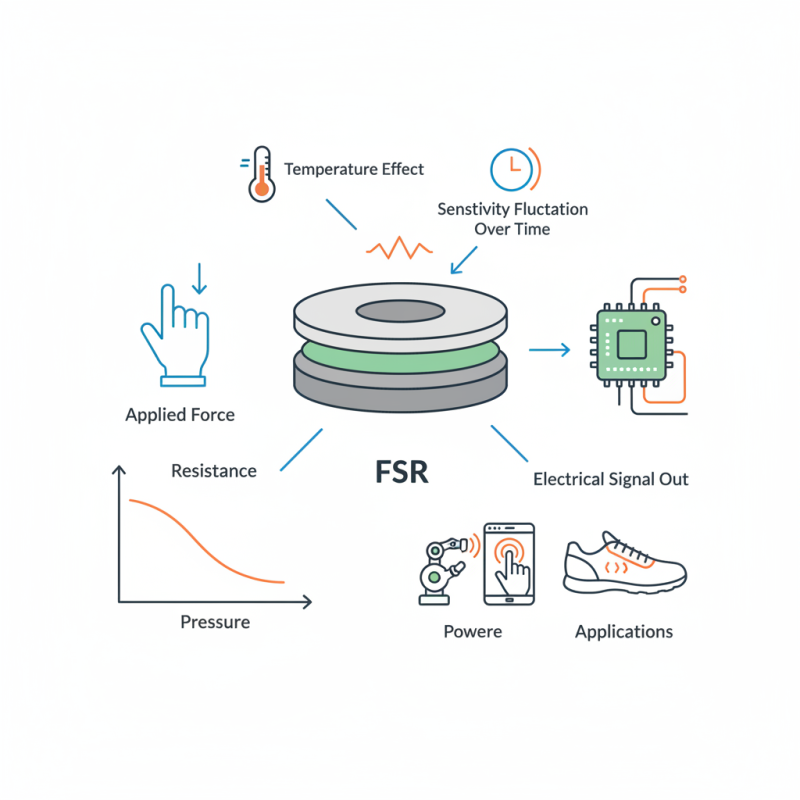

Despite their effectiveness, FSRs are not flawless. Their sensitivity can fluctuate over time. Factors such as temperature can impact performance unexpectedly. By exploring these aspects, we can appreciate both the potential and limitations of Force-Sensitive Resistors. This comprehension fosters better design choices and application developments in fields like robotics and consumer electronics.
What is a Force-Sensitive Resistor?

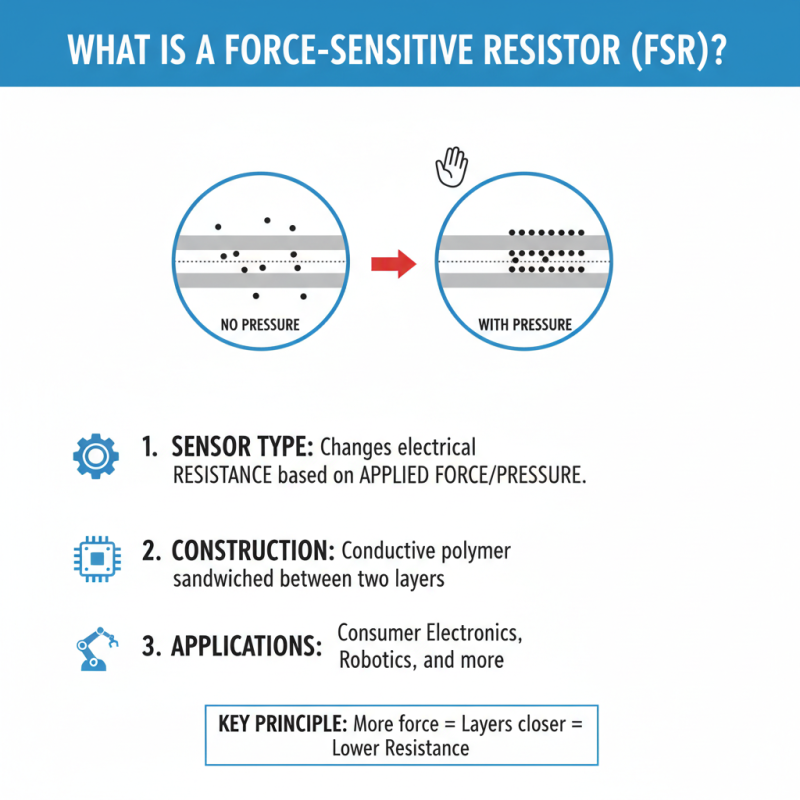

A force-sensitive resistor (FSR) is a type of sensor. It changes resistance based on the amount of force or pressure applied. These devices are widely used in various applications, from consumer electronics to robotics. An FSR usually consists of a conductive polymer sandwiched between two layers. When weight is applied, the layers come closer together, reducing resistance.
The working principle is quite simple. When you press down on the sensor, it detects the force applied. This change can be translated into an electrical signal. Many people use FSRs in projects like digital scales or touch-sensitive controls. They can detect varying levels of pressure, which makes them versatile.
Challenges exist with FSRs. Their response can vary depending on temperature and material aging. This inconsistency might lead to inaccurate readings. Users must consider calibration to ensure reliability. Although FSRs are easy to integrate, they require careful handling and testing. They offer valuable insights into force measurement despite these imperfections.

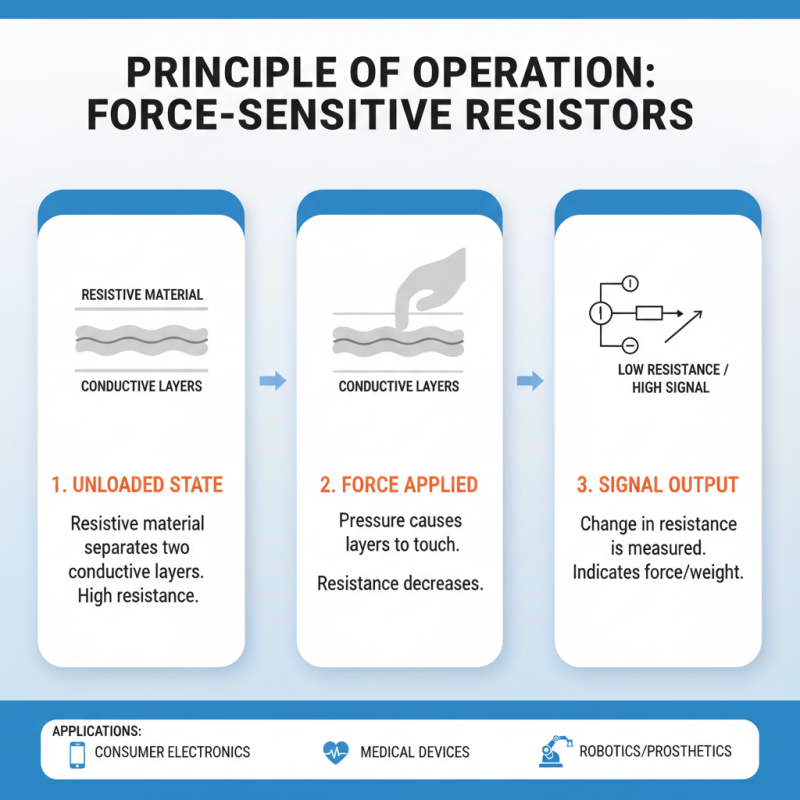

Principle of Operation for Force-Sensitive Resistors
Force-sensitive resistors (FSRs) are unique sensors that respond to applied force or pressure. These devices consist of a resistive material sandwiched between two conductive layers. When a force is applied, the resistance changes, allowing for accurate measurement of touch or weight. FSRs are often used in various applications, from consumer electronics to medical devices, showcasing their adaptability.
The operational principle of an FSR relies on the piezoresistive effect. When force is applied, the conductive particles within the resistive material compress and align, altering the material's conductive properties. This change in resistance correlates directly with the amount of force applied. By measuring this resistance, we can quantify the force exerted. However, factors such as temperature or material fatigue can influence accuracy, presenting challenges during implementation.
Understanding the nuances of this operating principle is essential. Users may encounter variations in sensitivity and linearity. Calibrating FSRs for specific applications might require careful experimentation. This ensures reliability and effectiveness in real-world scenarios. Paying attention to these details will help achieve better results and improve overall performance.
Applications of Force-Sensitive Resistors in Various Industries
Force-sensitive resistors (FSRs) have gained traction in various industries due to their versatility and ease of use. These sensors can detect changes in pressure or force, making them ideal for applications like touch-sensitive controls. In the automotive industry, FSRs can be used in seat occupancy detection. This ensures that safety mechanisms respond appropriately based on whether a passenger is present.
In the healthcare sector, FSRs offer innovative solutions. They can be integrated into wearable devices to monitor patient activity levels. This technology helps in assessing rehabilitation progress or tracking elderly patients’ movements. Industrial applications are also noteworthy. FSRs assist in robotic systems where pressure feedback is crucial. However, they may not always provide precise measurements in extreme conditions. This limitation is an active area for improvement.
Manufacturing and consumer electronics also benefit from FSR integration. Smart electronics can monitor user interaction. In furniture design, FSRs can create adaptive seating that responds to body pressure. But it’s vital to consider durability and long-term reliability. The industry continues to explore how to enhance the robustness of these sensors while reducing costs.
Advantages and Disadvantages of Using Force-Sensitive Resistors
Force-sensitive resistors (FSRs) are unique components that change resistance with applied mechanical stress. They are widely used in various applications, including robotics, wearable technology, and pressure-sensing equipment. Understanding the advantages and disadvantages of FSRs can help in selecting the right sensor for a project.
One major advantage of FSRs is their simplicity and ease of integration. They are lightweight and require little power, making them ideal for compact designs. FSRs are also relatively low-cost, which is appealing for large-scale applications. However, their sensitivity can sometimes be a drawback. They may not provide precise measurements, especially under varying environmental conditions. This inconsistency can lead to unreliable data in critical applications.
Tip: When using FSRs, consider performing calibration tests to improve measurement accuracy. This process can help mitigate some drawbacks associated with sensitivity. It's also important to be mindful of the material properties and loading conditions that affect their performance. Properly enclosing FSRs can protect them from unwanted physical shocks.
Another point of reflection is the lifespan of the FSRs. Although they are durable, repeated pressure can wear them down over time. This deterioration might not be evident until failure occurs. Regular testing and monitoring could prevent unexpected malfunctions. Overall, while FSRs offer practical benefits, understanding their limitations is essential.
Comparing Force-Sensitive Resistors with Other Sensor Technologies
Force-sensitive resistors (FSRs) are crucial in various applications, from smart devices to healthcare. When comparing FSRs with other sensor technologies, such as capacitive sensors or piezoelectric devices, unique advantages and drawbacks emerge. For instance, according to a market research report, the global force sensor market is projected to reach $2.9 billion by 2026, highlighting the growing demand for reliable sensors in diverse fields.
FSRs offer ease of integration due to their simple circuitry, making them an attractive choice for many engineers.
One key difference lies in sensitivity. FSRs are often less sensitive than their capacitive counterparts. Although this can be a downside in precision applications, FSRs excel in load detection tasks. Their affordability and flexibility make them ideal for consumer electronics. However, it's important to consider their limited linearity, which can impact performance in specific conditions.
Tips: When designing with FSRs, always evaluate the maximum load to avoid accidental damage. Additionally, consider environmental factors, as humidity can affect readings. Industrial applications may benefit from pairing FSRs with calibration systems, ensuring consistent accuracy over time. Choosing the right sensor technology requires understanding each option’s strengths and limitations relative to your specific needs. Balancing cost, sensitivity, and application requirements is essential for optimal results.
